System Features
Building volume:
450 x 450 x 400 mm (17.7 x 17.7 x 15.7 in)
(height incl. build platform)

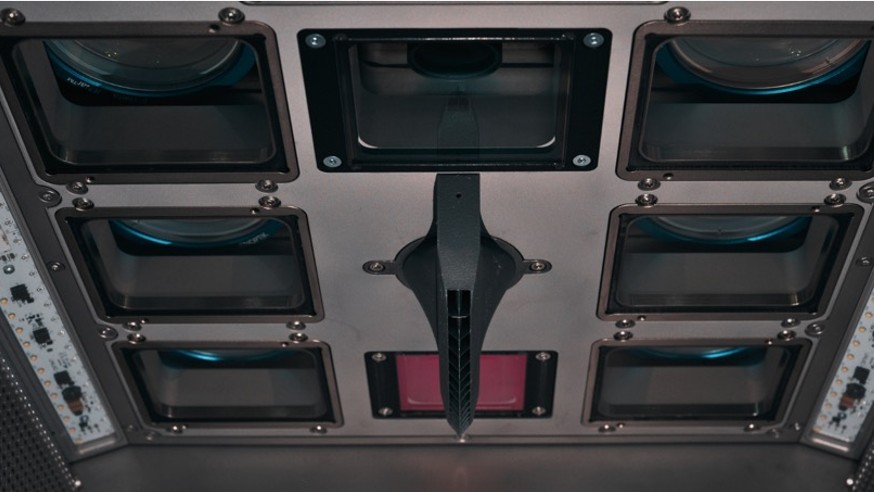

Laser type:
Yb fiber laser; 6 x 400 W
F-theta lens:
6
High-speed scanners:
6
Scanning speed:
up to 7.0 m/s (23 ft/s)
Focus diameter:
approx. 90 μm (0.00354 in)
Power supply:
3 x 54 A
Power consumption:
max. 45.0 kW / typical 29.0 kW
Compressed air supply:
7 Bar; 20 m³/h (102 psi; 706 ft³/h)
Machine Dimensions:
5500 x 2370 x 2730 mm (216.5 x 93.3 x 107.5 in)
Recommended installation space:
min. 7100 x 6000 x 3300 mm (279.5 x 236.2 x 129.9 in)
Weight:
approx. 5700 kg (12566 lbs)
